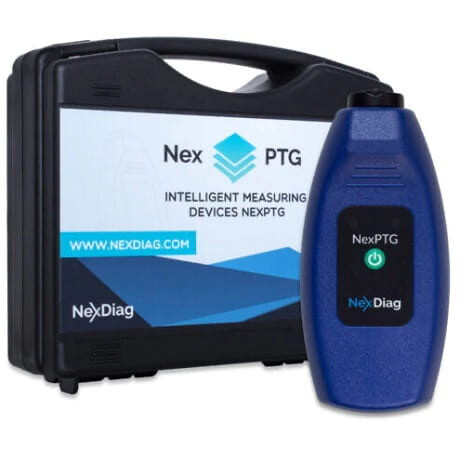

NexDiag Paint Depth Gauge Professional

The NexPTG Professional is an advanced version of the NexPTG paint depth gauge, enabling fast, accurate and intuitive vehicle testing. The device has a movable spherical probe, which also facilitates measurements of the vehicles’ concave and convex parts.

The Professional version makes measurements with even greater accuracy than the Economic and Standard versions. In addition, the Professional gauge has several options that will help the user to examine a vehicle more efficiently and more effectively, including:

Suggested measurement points

Buyer’s guide

Export of measurement history

Creation of reports

Technical Specs:

Testing on the substrate: Steel [Fe] / Zinc-plated Steel [Fe+Zn] / Aluminum [AI]

Recognized substrate types: [Fe] / [Fe+Zn] / [AI]

Range of measurement: 0-2500 μm (0-98.43 mils)

Resolution of measurement: 1 μm (0.4 mils)

Type of probe/End of probe: movable/spherical

Possible measurement on curvatures (profiled probe housing)

Measurement memory: up to 400 items

Wireless transmission: Bluetooth 4.0 LE

Multilingual menu: PL, EN, DE, FR, IT, ES, RU, FA, CZ, HE, NL

Ambient temperature: -20°C to +40°C

SAPL Basic: lacquer coating analysis system

Suggested measurement points

Creation and export of measurement history

Creation and export of reports

API communication

Supported systems: iOS/Android
