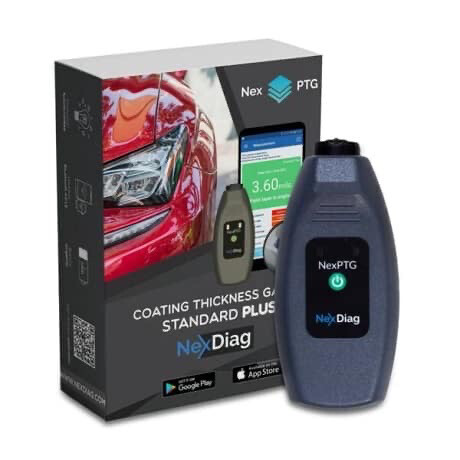

NexDiag Paint Depth Gauge Standard Plus

The NexPTG Standard Plus is the basic version of the NexPTG paint depth gauge. The meter has a movable spherical probe, which also facilitates measurements of the vehicles’ concave and convex parts. The NexPTG Standard Plus is the base model of the paint depth gauge in an extended version which not only allows fast and precise measurements but comes equipped with a profile point probe that allows the user to also test on rounded surfaces of the vehicle; too!

Technical Specs:

Testing on the substrate: Steel [Fe] / Zinc-plated Steel [Fe+Zn] / Aluminum [AI]

Recognized substrate types: [Fe] / [Fe+Zn] / [AI]

Range of measurement: 0-1000 μm (0-39.37 mils)

Resolution of measurement: 10 μm (0.4 mils)

Type of probe/End of probe: movable/spherical

Possible measurement on curvatures (profiled probe housing)

Measurement memory: up to 300 items

Wireless transmission: Bluetooth 4.0 LE

Multilingual menu: PL, EN, DE, FR, IT, ES, RU, FA, CZ, HE, NL

Ambient temperature: -20°C to +40°C

SAPL Basic: paint analysis system

Testing relative to reference point

Measurement statistics

Supported systems: iOS/Android – iOS 8 or Later, Android 4.3 or Later

NexPTG device

Calibration kit

User manual

Battery Set

Box

Professional Software

NexPTG has a dedicated smartphone app allowing you to examine the paint with unprecedented accuracy and precision.

Thanks to the Paint Coating Analysis System, you can analyse the paint on the surface of the entire body in an instant, and the application will help you interpret the results of measurements.

No other device on the market offers such possibilities.
